This gallery shows photographs of the various HexBeam antennas I have constructed over the past couple of years. It is not meant to be a step-by-step guide to construction, but rather a potpourri of techniques which may give you some ideas for constructing your own HexBeam.

  • Centre post Driver fixings

  • Centre post Reflector fixings

  • Centre post wire fixings

  • Preliminary testing

  • Final assembly

  • End spacing attachment

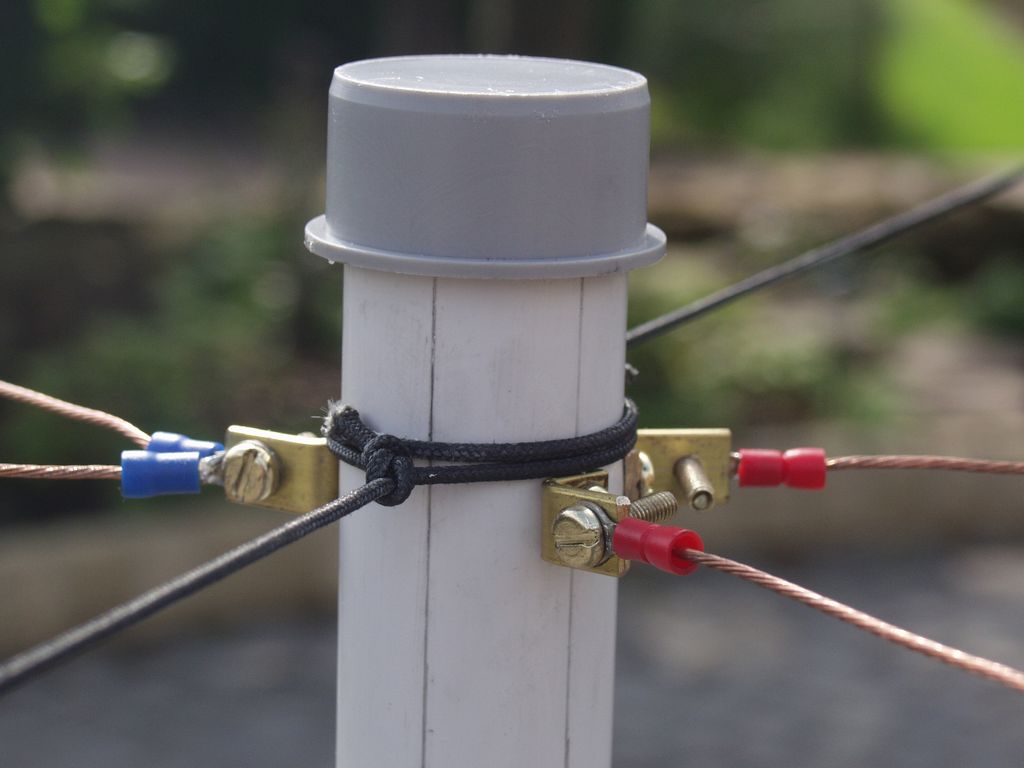

A view showing both the Drivers and Reflectors fixed in place.
