Hexbeam Photo Gallery
This gallery shows photographs of the various HexBeam antennas I have constructed over the
past couple of years. It is not meant to be a step-by-step guide to construction,
but rather a potpourri of techniques which may give you some ideas for constructing your own HexBeam.
Baseplate fixing bracket
Baseplate fixing bracket
Baseplate assembly
Spreader tip fixings
Broadband spreaders
Band interconnections
Flange centre post mounting
Centre post marking (step1)
Centre post marking (step 2)
Centre post marking (step 3)

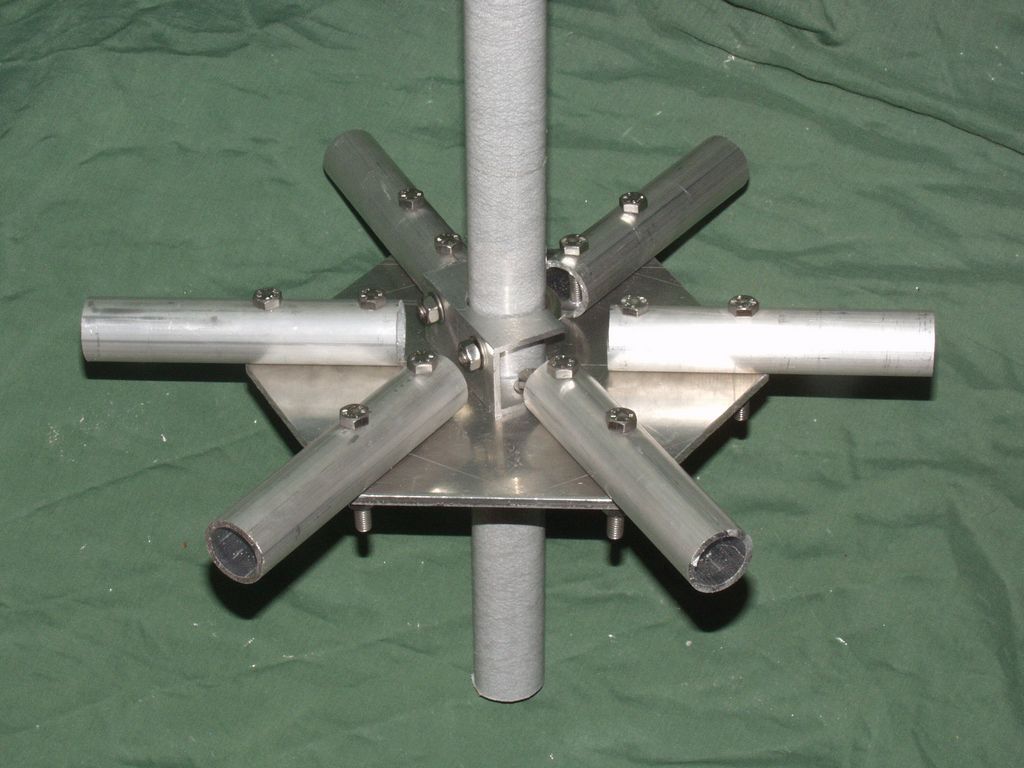

The complete baseplate assembly with spreader support tubes and fibreglass centre post.
